Nameless Interpreter for the Apple II+
120 Byte Interpreter that shall remain nameless
Inspired by Peter Ferrie and Michael Pohoreski.
Usenet discussion: comp.emulators.apple2 narkive.com
Here is the 6502 Assembly1 source code:
;By: mmphosis
;License: BSD "Sharing is Caring!"
ORG $BF65
HGR EQU $F3E2
HPOSN EQU $F411
CLRHGR2 EQU $F3DE
COUT EQU $DB5C ; OUTDO
RDKEY EQU $D553 ; INCHR
CODE EQU $1A
DATA EQU $26
BALANCE EQU $E1
HGRPAGE EQU $E6
VALUE EQU $EB
ORG $300
JSR HGR ; the screen that shall remain blank&blink for debugging
JSR HPOSN ; set up $27 $26 (data = $2000) $E2 $E1 (balance = $0000)
JSR CLRHGR2 ; set up $1B $1A (code = $6000) using other screen clear
BEQ START ; branch always Y=00
LOOP JSR DIRECT
OVER JSR WEIGH
LDA BALANCE
ORA BALANCE+1
BNE LOOP
; RTS ; fallthru with A=00 will RTS
INSTRUCT
LDX #DATA
CMP #'>' ; $3E increment DATA pointer
BEQ INC16
CMP #'<' ; $3C decrement DATA pointer
BEQ DEC16
SBC #'+' ; opcodes +,-. $2B $2C $2D $2E
TAX ; become ?012 $FF $00 $01 $02
STX VALUE
BEQ INKEY ; read key , INKEY $00 Carry is set for SUB 0
READ_ LDA (DATA),Y ; this SEGFAULT knows no bounds! careful
BNE NONZERO
;ZERO CLV ; increment direction, oVerflow is clear already
CPX #'['-'+' ; $5B = 30+2B because SBC #'+'
BEQ OVER
BNE RESUME
NONZERO
; SEV ; decrement direction
; BIT DONE ; bit 6 of #$60 is set
; BIT $0C ; hopefully #$E1
BIT HGRPAGE ;definitely #$40 as it was set in call to CLRHGR2
CPX #']'-'+' ; $5D = 32+2B
BEQ OVER
RESUME DEX
DEX
BEQ ECHO
CPX #$FD ; Carry is set
BCS SUB ; either ADD +1 (aka subtract -1) or SUB +1
RTS
INKEY
JSR RDKEY
; AND #$7F ; INCHR does this
SUB SBC VALUE ; if fallthru from INKEY then VALUE=0
WRITE_ STA (DATA),Y ; there is no SEGFAULT just spinning drive motors
RTS
;ECHO_ ORA #$80 ; OUTDO does this
; CMP #$8A ; "Laugh
; BNE ECHO ; in the face
; LDA #$8D ; of danger"
ECHO JMP COUT
WEIGH
LDA (CODE),Y
LDX #BALANCE
CMP #'[' ; heavier
BEQ INC16
CMP #']' ; lighter
BNE DONE
DEC16 LDA $00,X
BNE SKIP
DEC $01,X
SKIP DEC $00,X
RTS
DIRECT
LDX #CODE
BVS DEC16 ; "This is the way"
INC16 INC $00,X
BNE DONE
INC $01,X
RTS
OPCODE
JSR INSTRUCT
CLV ; increment direction
JSR DIRECT ; next instruction
START ;LDY #$00 ; because COUT trashes Y?
LDA (CODE),Y ; fetch instruction
BNE OPCODE
DONE RTS
The DATA is stored starting at $2000. Normally this buffer is 30000 bytes, but only the first 16384 bytes are cleared and then you overrun into your program. The program CODE is stored starting at $6000. There is absolutely no bounds checking!
ROM calls2 are made to save a lot of bytes. Calls to the Applesoft ROM are used, so if you are running this on the original Apple II you may need to switch to Applesoft using the Language Card.
300: :20 E2 F3 20 11 F4 20 DE F3 F0 68 20 61 3 20 4C 3 A5 E1 5 E2 D0 F4 A2 :26 C9 3E F0 48 C9 3C F0 37 E9 2B AA 86 EB F0 19 B1 26 D0 6 E0 30 F0 :DE D0 6 24 E6 E0 32 F0 D6 CA CA F0 D E0 FD B0 4 60 20 53 D5 E5 EB 91 :26 60 4C 5C DB B1 1A A2 E1 C9 5B F0 11 C9 5D D0 1F B5 0 D0 2 D6 1 D6 :0 60 A2 1A 70 F3 F6 0 D0 E F6 1 60 20 17 3 B8 20 61 3 B1 1A D0 F5 60
To run the Interpreter from the Monitor, type 300G, but before you do that you will need to have a program to run.
Here is an Applesoft BASIC program to enter programs into memory.
0 FOR A = 24576 TO 38399 1 GET A$ 2 POKE A, 0 3 C = ASC(A$) 4 IF C < 32 AND P < 32 THEN END 5 PRINT A$; 6 LET P = C 7 POKE A, ASC ( A$) 8 NEXT A
Enter two control characters in a row to indicate the end of text. For example: press the Return key twice.

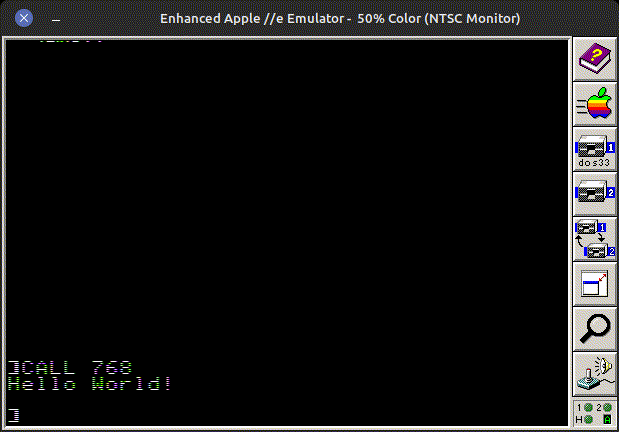

Here is a Hello World program for the interpreter:
++++++++[>++++[>++>+++>+++>+<<<<-]>+>->+>>+[<]<-]>>.>>---.+++++++..+++.>.<<-.>.+++.------.--------.>+.>++.++++++.
To run the Interpreter from BASIC, type CALL 768

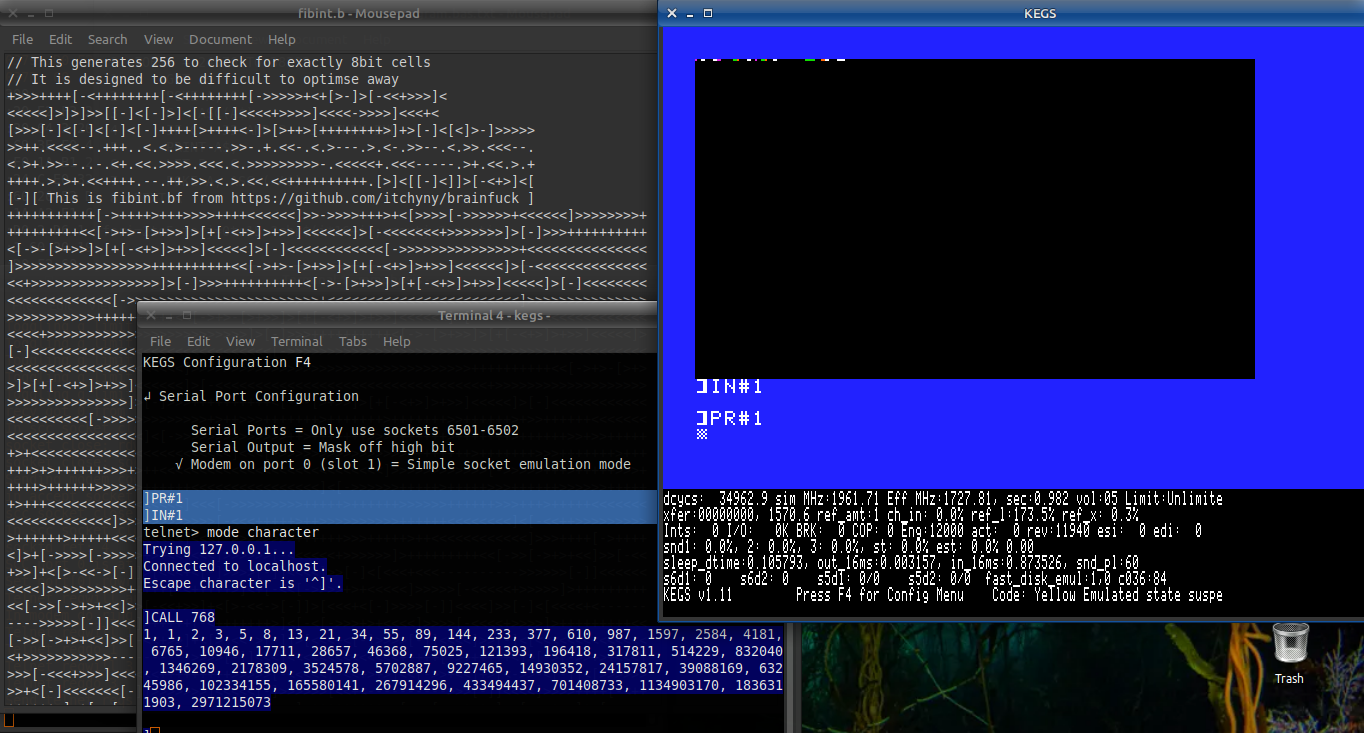

AppleWin Apple II emulator3
START an instruction loop
Before we get to START the interpreter some initialization needs to be done. The first thing the interpreter will do is clear the HGR screen which is a big hack to clear 8192 bytes of the program’s DATA buffer, but it saves a lot of bytes in avoiding initial housekeeping. The screen will remain showing “Hi-resolution” GRaphics (HGR) and four lines of TEXT at the bottom of the screen. This is helpful for debugging as you can see bits changing on the graphics portion of the screen and see the text output at the bottom of the screen.
The second initializing call is to HPOSN which is used to setup the DATA pointer in the zero page at $26 and $27 and the BALANCE value in the zero page at $E1 and $E2. This is not what HPOSN was meant for but it is a way to save more bytes! Next, HGR2 is cleared without switching the screen to page 2 by making a call to $F3DE and this sets up the program CODE pointer in the zero page at $1A and $1B and also clears 8192 more bytes for DATA. The call to $F3DE leaves the Zero flag set so that a branch into the START of the interpreter assembly code can happen.
The Y register is already zero which saves 2 bytes! The Y Register needs to have the value zero throughout the program as Zero Page Indirect Y-Indexed addressing mode is used in four places.
LDA (CODE),Yfetches the interpreter op code which may be one of these commands:
op hex dec what the command does > $3E 62 increment the DATA pointer < $3C 60 decrement the DATA pointer + $2B 43 increment the byte value at the DATA pointer - $2D 45 decrement the byte value at the DATA pointer . $2E 46 echo the character loaded from the byte at the DATA pointer , $2C 44 read a character and store it to the byte at the DATA pointer [ $5B 91 if the DATA byte value is zero then
jump to the next command after the matching ]] $5D 93 if the DATA byte value is not zero then
jump back to the command after the matching [^@ $00 0 quit the interpreter
LDA (DATA),Ygets the byte value at the DATA pointer which is used by the+-.[and]commands.
STA (DATA),Yputs the byte value at the DATA pointer which is used by the+-and,commands.
After fetching the instruction byte if the op code is zero the interpreter quits. If the op code is non-zero, a branch is made into the OPCODE instruction loop BNE OPCODE. The first call at the start of OPCODE is to JSR INSTRUCT and when it returns it gets the next op code by incrementing the CODE pointer CLV JSR DIRECT. I'll describe the INSTRUCT and DIRECT calls in more detail.
INSTRUCT
This is the main part of the interpreter where each op code actually does what the command is supposed to do. LDX #DATA primes the X register so that both of the INC16 or DEC16 calls will operate on the DATA pointer. This first part of the interpreter is pretty straight forward for the two commands. CMP #'>' BEQ INC16 means if it's the > command increment the 16 bit DATA pointer. CMP #'<' BEQ DEC16 means if it's; the < command decrement the 16 bit DATA pointer.
Subtraction, the Carry (aka “not” borrow) flag and the oVerflow flag
Now things get a bit hairy. I noticed a pattern with the commands. It can be best described with a one-liner Applesoft program.
FORI=2TO5:FORJ=0TO15:?" "CHR$(I*16+J);:NEXTJ:?:NEXTI
The output from this helped me find a pattern that I used to reduce the size of the program.! " # $ % & ' ( ) * + , - . / 0 1 2 3 4 5 6 7 8 9 : ; < = > ? @ A B C D E F G H I J K L M N O P Q R S T U V W X Y Z [ \ ] ^ _The ordered sequence of the
+,-and.commands can be put to use in greatly reducing the overall code size.
SBC #'+' makes the character code into value that really fits well with what the instruction is going to do! Note that the Carry flag does not need to be set or cleared before the SuBtract with Carry (SBC) assembly code — this saves one byte! I think the aligned comment describes what is going on here:
SBC #'+' ; opcodes +,-. $2B $2C $2D $2E TAX ; become ?012 $FF $00 $01 $02
The prior CMP #'<' Cleared the Carry flag for any command value less than < ($3C.) This means that for these lower values SBC will borrow and subtract by one more, so the + command becomes $FF which is $2B - $2B - 1. The , command becomes $00, the - command becomes $01 and the . command becomes $02.
The VALUE is Transferred from the Accumulator to the X Register TAX, and then stored in the zero page STX VALUE for possible later use. No comparison is needed where BEQ INKEY means if the X Register is zero then it's the , command so branch to INKEY.
LDA (DATA),Y reads the byte value from the DATA pointer which will be needed by subsequent code. BNE NONZERO means branch to NONZERO if the byte value is non-zero and fallthrough if the byte value is zero. If it's zero, the the oVerflow flag is clear already for the [ command and if it's non-zero we set the oVerflow flag. The 6502 does not have a SEV instruction so we set the overflow flag by using BIT $0C with a known value $E1 in the zero pageBIT HGRPAGE4 which was set to $40 in the call to $F3DE. The Overflow flag will be used to determine which way to read instructions for the [ and ] commands. BEQ OVER if it's the appropriate command for the appropriate direction it branches to OVER using CPX #'['-'+' or CPX #']'-'+'. This accounts for the Carry flag having been set when we subtracted '+' to yield the VALUE that is now in the X Register.
I'll go over what happens at OVER after I resume describing what happens at RESUME. I hope the names I used make sense. Good names for things is so important.
KEGS Apple II emulator3
Rather the DEX DEX to subtract 2 from the X Register instead of doing a bunch of comparisons. BEQ ECHO branches to ECHO for the . command.
COUT EQU $DB5Cis actually calling OUTDO which sets the high bit of the character to be printed. This saves 2 bytes.
The CPX #$FD checks that the X Register is only $FD or $FF and the Carry flag will be set as well. X won't be $FE because we already checked for the , command earlier. With a single BCS SUB branch to SUB for both + and - commands. RTS because anything else is ignored.
+ - and , commands all do SBC VALUE. The VALUE is different for each command:
+will subtract -1 which means add +1.
-will subtract 1.
,willJSR RDKEYbefore subtracting 0.
RDKEY EQU $D553is actually calling INCHR which clears the high bit of the character that was gotten. This saves another 2 bytes.
OVER
At the first entry point at OVER,JSR WEIGH returns with a new 16-bit value for BALANCE which is checked and if it's zero it will fallthrough to RTS. Otherwise, it branches to LOOP which moves the CODE pointer in the appropriate direction with JSR DIRECT.
WEIGH tips the scale heavier for each [ command and lighter for each ] command.
DIRECT increments or decrements the CODE pointer depending on the oVerflow flag.
Given the offset value in the X Register, INC16 increments and DEC16 decrements the 16-bit zero page value. I actually hadn't used Zero Page,X addressing mode before but it seems to have shortened up the code because these operations are called a lot for different values in the zero page.
My article is over — get me out of this Turing tar-pit. The idea here was to document some of my process in coding this. I tried to write down why I coded things the way I did. I hope you found some insight and maybe this program can still be made shorter!
